Swing Catalyst Lynx (GigE) - High Speed Sports Swing Camera
Swing Catalyst Lynx (GigE) - High Speed Sports Swing Camera

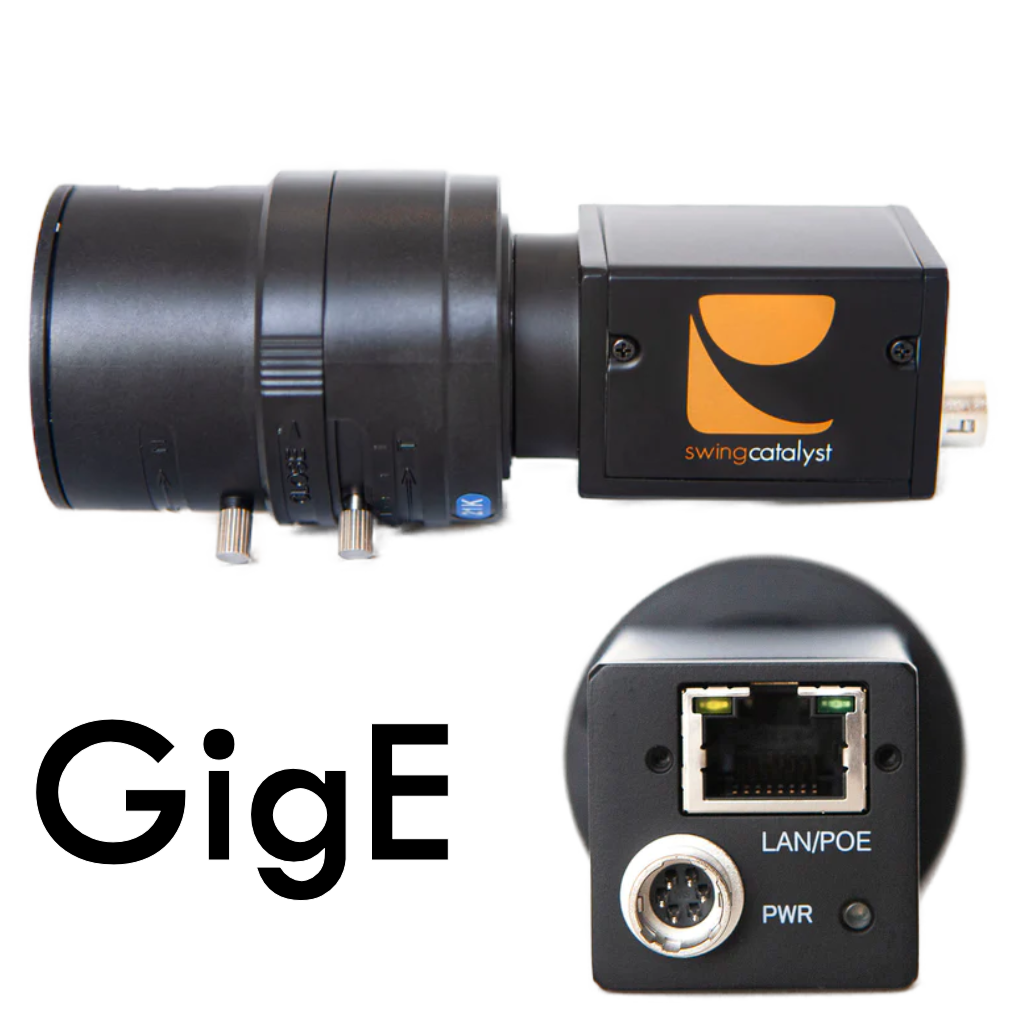

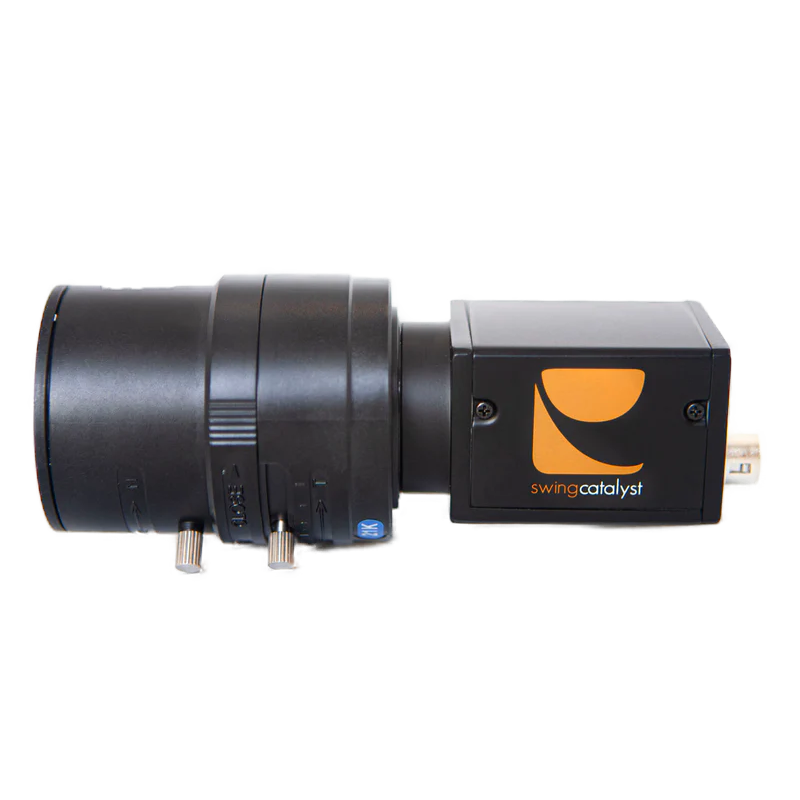

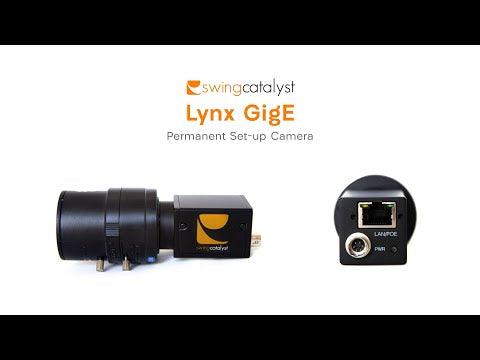

Swing Catalyst LYNX GigE
- 320 FPS
- Sensor type CMOS, global shutter
- Sensor model Sony® IMX273
- Sensor size 1/2.9"
- Resolution 720 × 540
- 2.8-10 mm varifocal lens. 5'-25' from golfer. (A short range Lens can also be ordered).

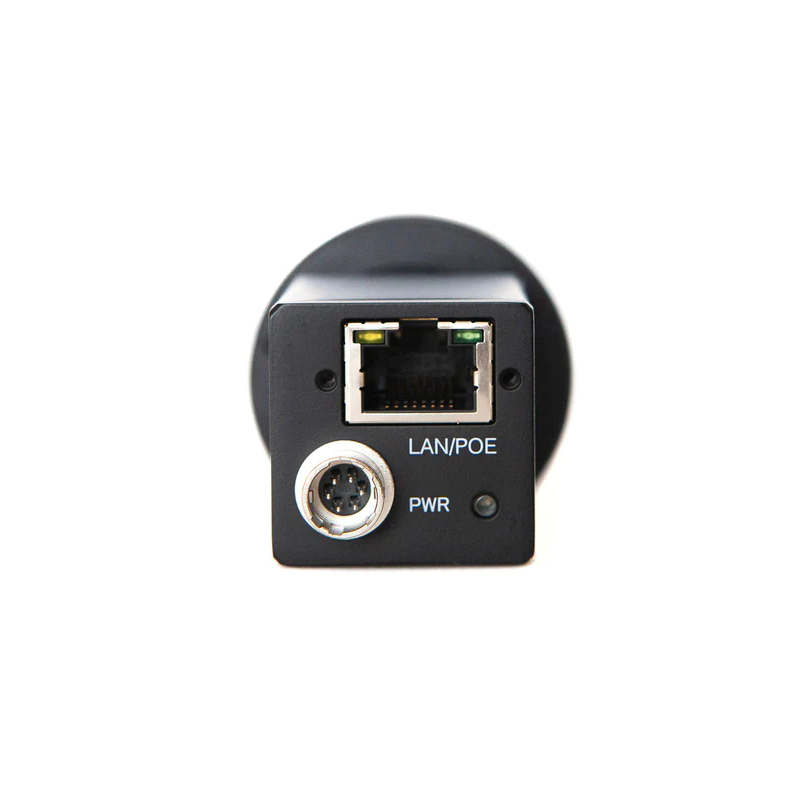

- This GigE camera requires a PoE card installed in the computer, or separate a PoE power injector.
Software:
- For use with Swing Catalyst software only.
- This software can come pre-configured with an computer you purchase from SurfThing.
Installation
Software and cameras will come ready for plug and play if you order them with a Simulator PC from SurfThing.
Details & Specifications
Details & Specifications
Swing Catalyst LYNX GigE
• 320 FPS
• Sensor type CMOS, global shutter
• Sensor model Sony® IMX273
• Sensor size 1/2.9"
• Resolution 720 × 540
• 2.8-10 mm varifocal lens. 5'-25' from golfer. (A short range Lens can also be ordered).
• This GigE camera requires a PoE card installed in the computer, or separate a PoE power injector.
Software:
• For use with Swing Catalyst software only.
• This software can come pre-configured with an computer you purchase from SurfThing.
Installation
Software and cameras will come ready for plug and play if you order them with a Simulator PC from SurfThing.
Click here for the install guide from Swing Catalyst.
